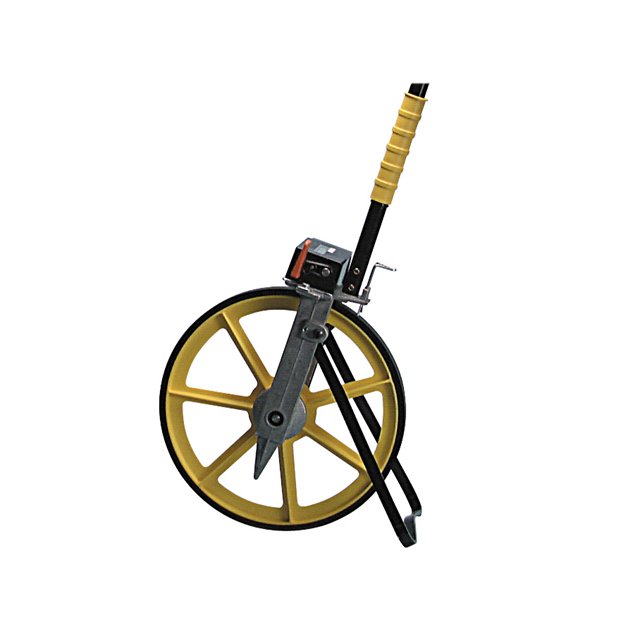

Fisco WH10 Road Measuring Wheel

The Fisco Road-Meter is a robust measuring wheel for professional surveying, highway and site work.

The wheel frame is constructed from high quality polypropylene which is virtually unbreakable can withstand rigorous use.

The spokes are sturdily designed to minimise wind resistance, which makes the Road-Meter easy to use in difficult weather conditions. The high visibility yellow offers added to safety for highway use.

The tyre is made of an abrasion resistant material which is cast onto the wheel to ensure a close fit, and to maintain the highest level of accuracy. At any point on the tyre the thickness is exactly 22 mm so that the wheel will not tilt or generate variable readings. The cast forks incorporate a pointer for precise recordings.

Balanced centrally over the wheel, the precision counter has large clear reading numbers which can measure up to 10 kilometers in one stretch. The simple zeroing lever enables instant resetting, and the counter can be run backwards to subtract accurately any over run.

The Road-Meter comes equipped with a foot operated folding stand and a brake for start/stop measuring. The dirt remover maintains accuracy during use.

Specifications
Tough, metal gearing and working parts for longevity.
Belt drive is easier to replace and more durable than other mechanisms.
Clear reading counter mechanism, displays metres and centimetres, has an instant reset lever and is accurate to 0.1%.
Extremely tough die-cast fork frame holds wheel bearings.
Swivel link folds sideways for quick collapse and packing.
Integral dirt scraper keeps wheel accurate.
Easy to use foot operated brake locks the wheel at the required measurement.
Clearly visible pointer for accurate start and end readings.
Folding stand can be steadied by a foot to prevent wheel being blown over by wind or traffic movement.
Supplied in strong nylon carrying bag. 55 x 17 x 53cm.
